基于FPGA的乒乓球比赛游戏机设计Verilog代码ISE仿真

名称：基于FPGA的乒乓球比赛游戏机设计Verilog代码ISE仿真

软件：ISE

语言：Verilog

代码功能：

乒乓球比赛游戏机。

功能要求:

1、设计一个由甲、乙双方参赛,有裁判的3人乒乓球游戏机。

2、用多个LED排成一条直线,以中点为界,两边各代表参赛双方的位置,其中一只点亮的LED指示球的当前位置,点亮的LED依此从左到右,或从右到左,其移动的速度应能调节;甲乙双方每隔5次自动交换发球权,拥有发球权的一方发球才有效。

3、当“球”(点亮的那LED)运动到某方的最后一位时,参赛者应能果断地按下位于自己一方的按钮开关,即表示启动球拍击球。若击中,则球向相反方向移动;若未击中,则对方得1分;一方得分时,电路自动响铃,这期间发球无效等铃声停止后方能继续比赛,设置自动记分电路,甲、乙双方音进行记分显示。每计满11分为1局。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

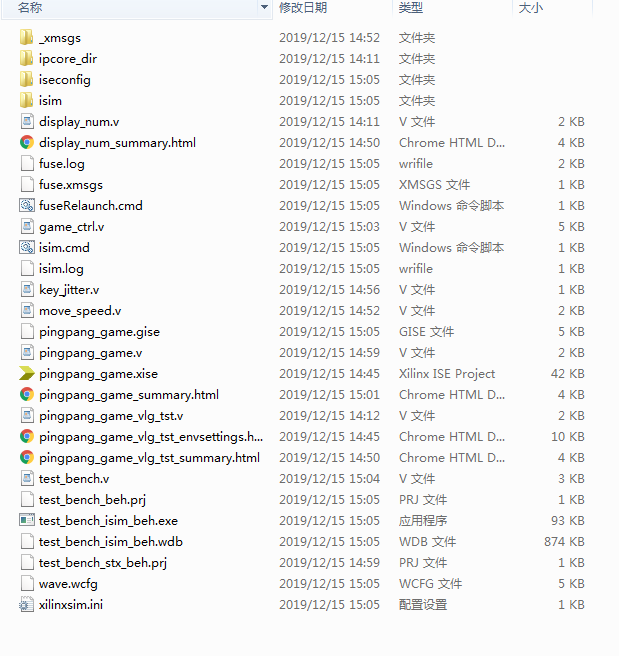

1. 工程文件

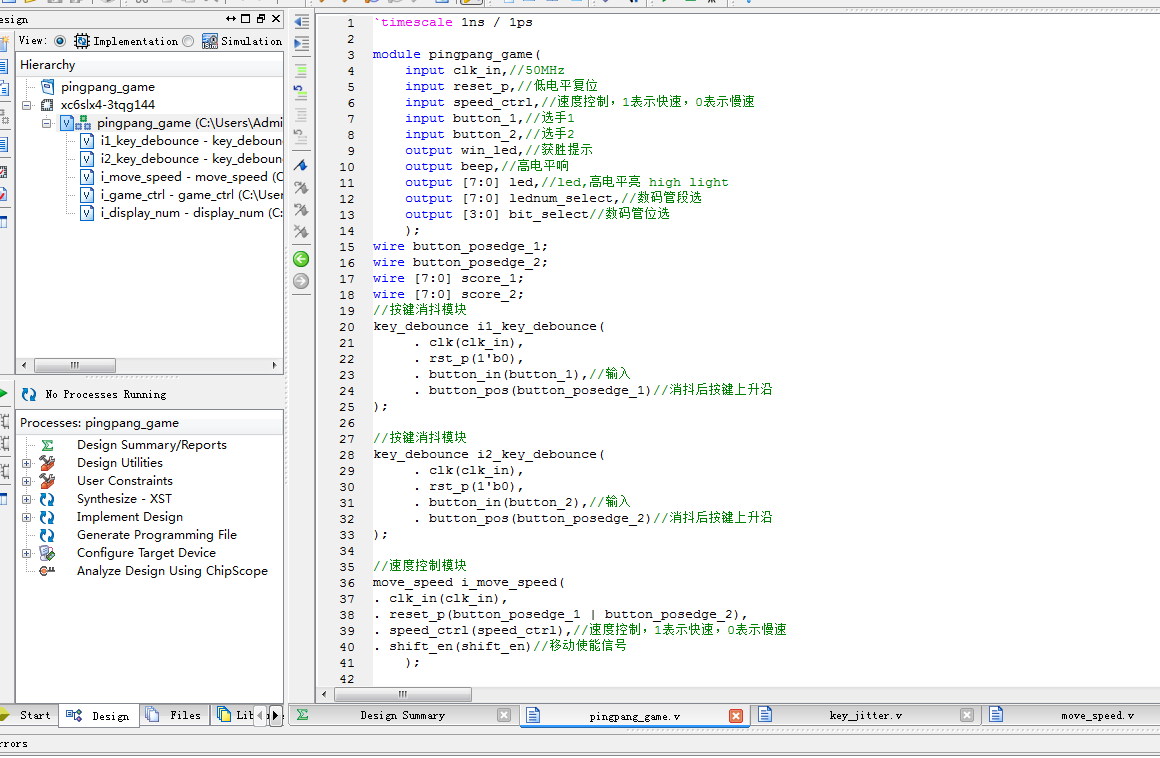

2. 程序文件

3. 程序编译

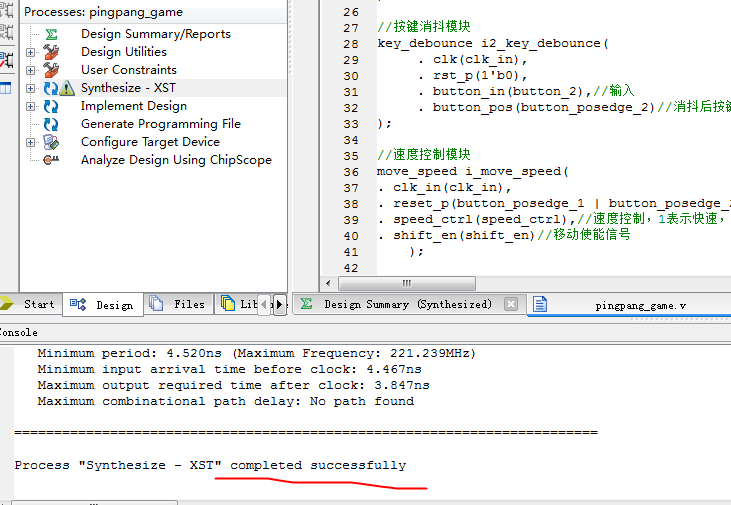

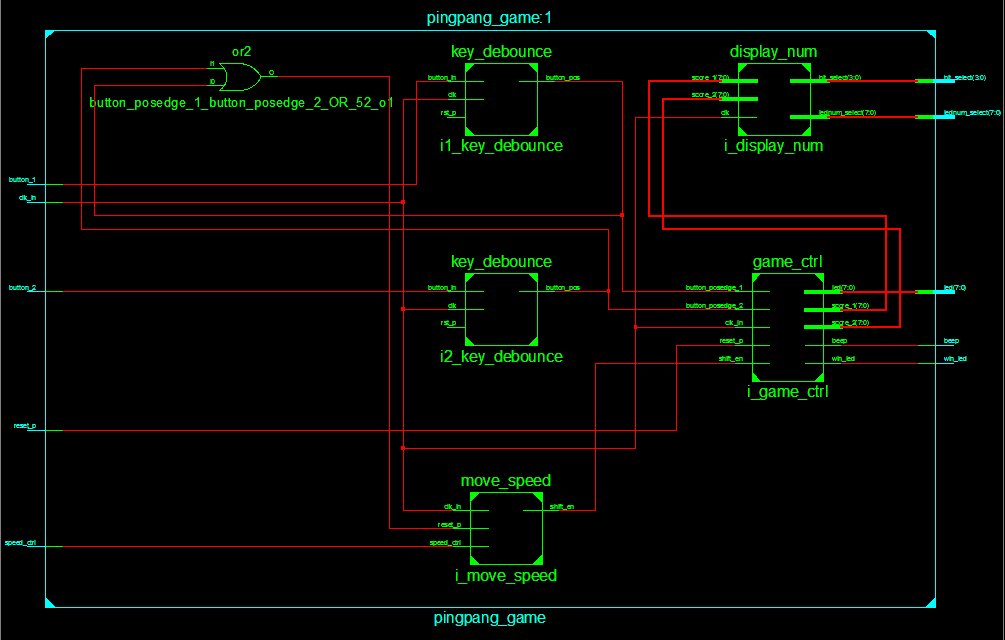

4. RTL图

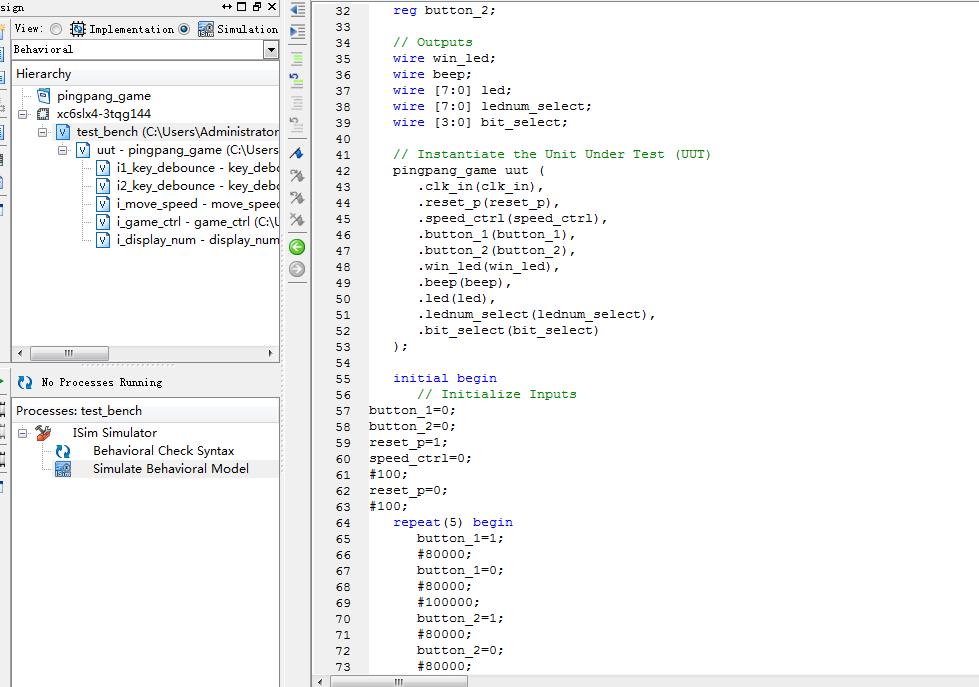

5. Testbench（仿真文件）

6. 仿真图

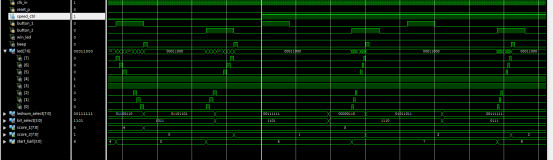

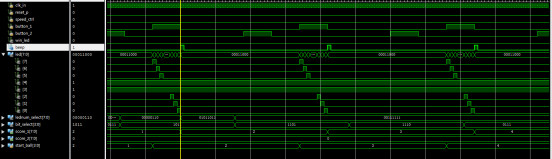

整体仿真图

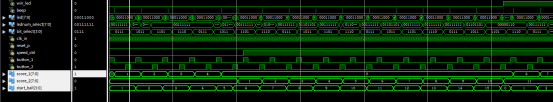

甲发球并得分，甲发球权，乙发球无效

speed_ctrl控制稍球的速度

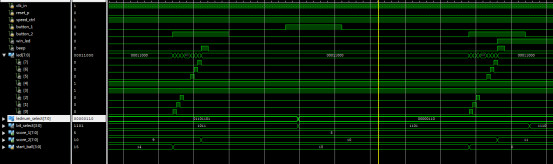

乙发球，并得分，乙发球权，甲发球无效

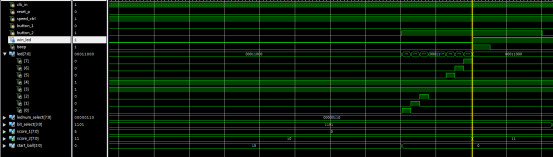

乙先得11分，win_led亮

部分代码展示:

`timescale?1ns?/?1ps
//游戏控制模块
module?game_ctrl(
????input?clk_in,
????input?reset_p,//复位,裁判
????input?button_posedge_1,//甲，按键1
????input?button_posedge_2,//乙，按键2
?input?shift_en,?
????output?[7:0]?led,//8个led
?output?reg?win_led,//一局结束指示
?output?reg?beep,//高电平响
????output?[7:0]?score_1,//分数1
????output?[7:0]?score_2//分数2
????);
reg?[7:0]?led_buf=8'd0;
//定义状态
parameter?s_idle=4'd0;
parameter?s_start_1=4'd1;
parameter?s_start_2=4'd2;
parameter?s_run_L=4'd3;
parameter?s_run_R=4'd4;
parameter?s_win_1=4'd5;
parameter?s_win_2=4'd6;
parameter?s_end=4'd7;
reg?[3:0]?state=4'd0;
reg?[3:0]?start_ball=4'd0;//发球计数，每人5次，0~4甲，5~9乙。
always@(posedge?clk_in)//发球计数
if(start_ball<5)//发球计数，每人5次，0~4甲
if(button_posedge_1==1)
start_ball<=start_ball+1;
else
;
else//发球计数，每人5次，5~9乙。
if(button_posedge_2==1)
start_ball<=start_ball+1;
else
;
//状态机设计
always@(posedge?clk_in)
if(reset_p==1)
????state<=s_idle;
else
????case(state)
???????s_idle:begin//初始状态
????????????led_buf<=8'd0;
????????????if(start_ball<5?&&?button_posedge_1==1)//1号发球
????????????????state<=s_start_1;
????????????else?if(start_ball>4?&&?button_posedge_2==1)//2号发球
????????????????state<=s_start_2;
????????????else
????????????????state<=s_idle;
????????????end
??????s_start_1:begin//1号发球起始位置
????????????state<=s_run_R;
????????????led_buf<=8'b10000000;
????????????end
??????s_start_2:begin//2号发球起始位置
????????????state<=s_run_L;
????????????led_buf<=8'b00000001;
????????????end??
??????s_run_R:begin//球右移
????????????if(shift_en)
???????????????led_buf<=led_buf>>1;//球右移
????????????else
???????????????led_buf<=led_buf;??
??????
????????????if(button_posedge_2==1)
????????????????if(led_buf==8'b00000001)//判断对方是否正确位置击球??????????
????????????????????state<=s_run_L;//改变方向
????????????????else
????????????????????state<=s_win_1;//否则得分
????????????else?if(led_buf==8'b00000000)//对方未在正确位置击球
????????????????????state<=s_win_1;
????????????????else
????????????????????state<=s_run_R;
????????????end
??????s_run_L:?begin//球左移
????????????if(shift_en)
????????????????led_buf<=led_buf<<1;//球左移
????????????else
????????????????led_buf<=led_buf;?
????????????????
????????????if(button_posedge_1==1)
????????????????if(led_buf==8'b10000000)//判断对方是否正确位置击球???????????
????????????????????state<=s_run_R;//改变方向
????????????????else
????????????????????state<=s_win_2;//否则得分
????????????else?if(led_buf==8'b00000000)//对方未在正确位置击球
????????????????????state<=s_win_2;
????????????????else
????????????????????state<=s_run_L;????????
?????????????end?????????
????????s_win_1:
?if(beep_cnt>=32'd499)//响铃程持续500时钟
state<=s_idle;//返回初始状态
?else
state<=s_win_1;
????????s_win_2:
?if(beep_cnt>=32'd499)//响铃程持续500时钟
state<=s_idle;//返回初始状态
?else
state<=s_win_2;
????????default:;
???endcase
//计分
reg?[7:0]?score_1_buf=8'd0;
reg?[7:0]?score_2_buf=8'd0;
always@(posedge?clk_in)
????if(reset_p==1)
????????score_1_buf<=8'd0;
????else
??if(state==s_win_1?&&?beep_cnt==32'd0)
score_1_buf<=score_1_buf+8'd1;//加一分
always@(posedge?clk_in)
????if(reset_p==1)
????????score_2_buf<=8'd0;
????else
????????if(state==s_win_2?&&?beep_cnt==32'd0)
????????????score_2_buf<=score_2_buf+8'd1;//加一分
//任何一方先记满11分获胜
reg?beep_en=0;
always@(posedge?clk_in)
????if(reset_p==1)begin
?win_led<=0;
?end
?else
?if(score_1_buf>=8'd11?||?score_2_buf>=8'd11)begin
win_led<=1;//任何一方先记满11分获胜
end
?else?begin
win_led<=0;
end
//得分自动响铃
reg?[31:0]?beep_cnt=32'd0;
always@(posedge?clk_in)
if(reset_p==1)
beep_cnt<=32'd0;
else
if(state==s_win_1?||?state==s_win_2)
beep_cnt<=beep_cnt+32'd1;
else
beep_cnt<=32'd0;
always@(posedge?clk_in)
if(reset_p==1)
beep<=30;
else
if(state==s_win_1?||?state==s_win_2)
beep<=1;//得分自动响铃
else
beep<=0;
assign?score_1=score_1_buf;
assign?score_2=score_2_buf;
assign?led=led_buf?|?8'b00011000;//中间2个作为中网
endmodule
